| Hamblin SJ |
| Specs |
Year: 2005Builder: Kent Hamblin
Model: Jim Tozier Signature SJ
Serial Number: 0551
Top: Cedar

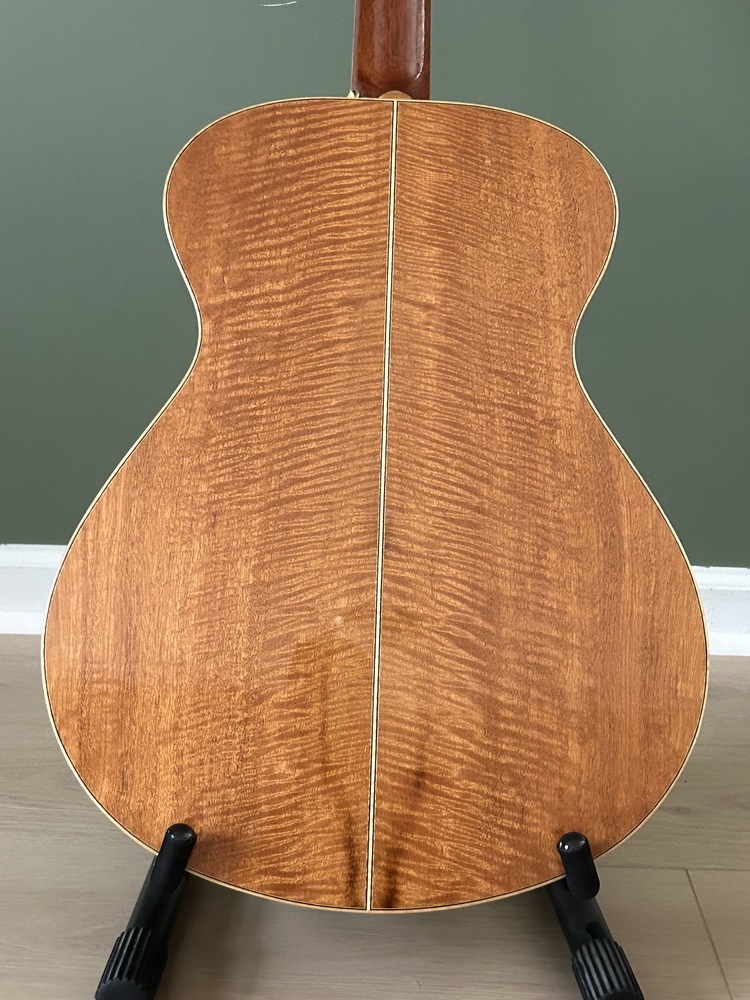

Body: Flamed "Fiddleback" Mahogany
Body Finish: Gloss
Body Size/Shape: Small Jumbo
Body Width at Upper Bout: 11.5"
Body Width at Waist: 9.5"
Body Width at Lower Bout: 16.25"
Body Depth at Neck Joint: 3.5"
Body Depth at Tail Block: 4.5"
Body Binding: Flamed Maple
Body Purfling: Black Pinstripes
Cutaway: None
Rosette: Flamed Mahogany and Maple Rings
Pickguard: None
Bridge: Ebony
Bridge Pins: Ebonys
Saddle: Tusq
String Spacing at Saddle: 2.25"
Neck: Mahogany
Neck Finish: Satin
Neck Profile: Modified Soft Oval
Neck Joint: Modern Bolt-On
Heelcap: Flamed Maple
Scale Length: 25.7"
Fretboard: Ebony
Fretboard Binding: Flamed Maple
Fretboard Inlay: None
Frets: 20
Frets to Body: 14
Fretboard Radius: 16"
Nut: Tusq
Nut Width: 1.75"
Headstock: Hamblin SJ
Headplate: Ebony
Headplate Logo: Flamed Maple "H"
Tuners: Gotoh 510
Tuner Buttons: Ebony
Tuner Ratio: 21:1
Case: TKL Hardshell Case w/ Colorado Case Cover
Pickup: K&K Pure Western
Strings: D'Addario XS Phosphor Bronze (.012-.053)

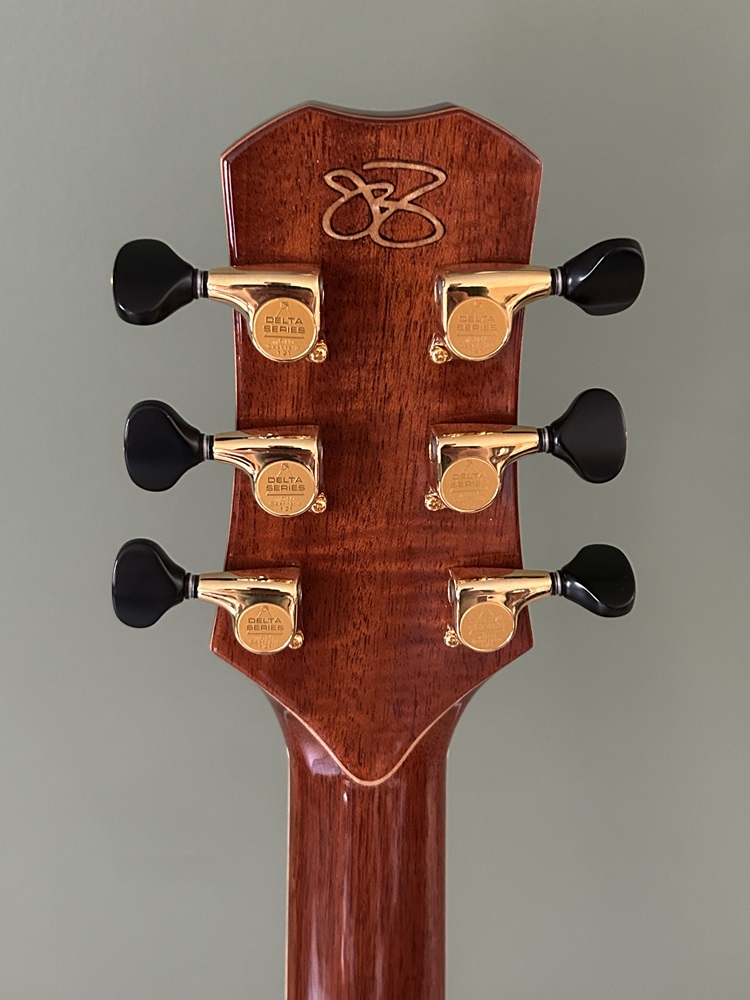

Special Inlay: Jim Tozier signature in Maple on back of headstock; inlay was done by Bill Nichols
| Photos |
